CE-1600F Keilriemen / V-belt

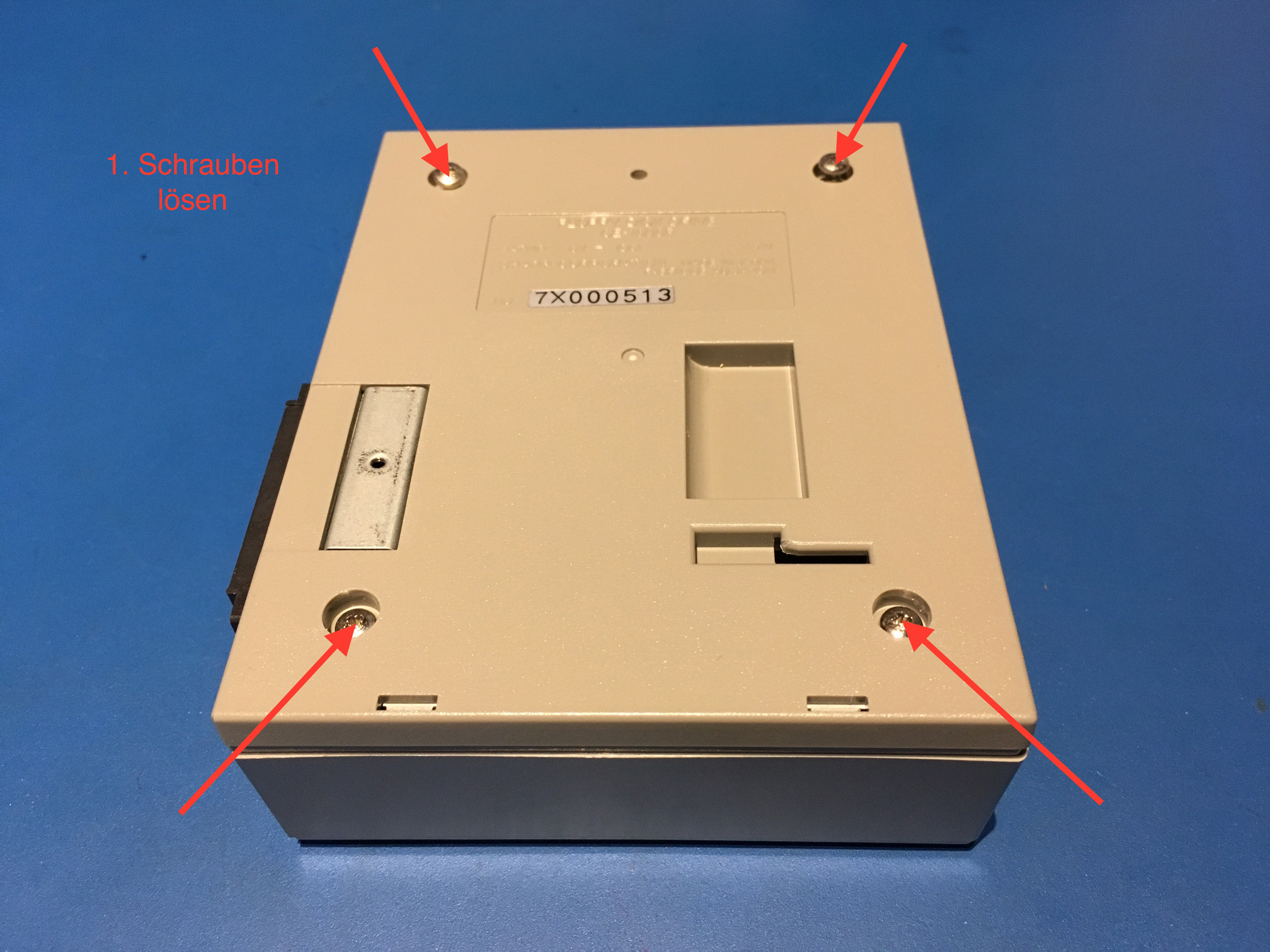

1. Remove the screws.

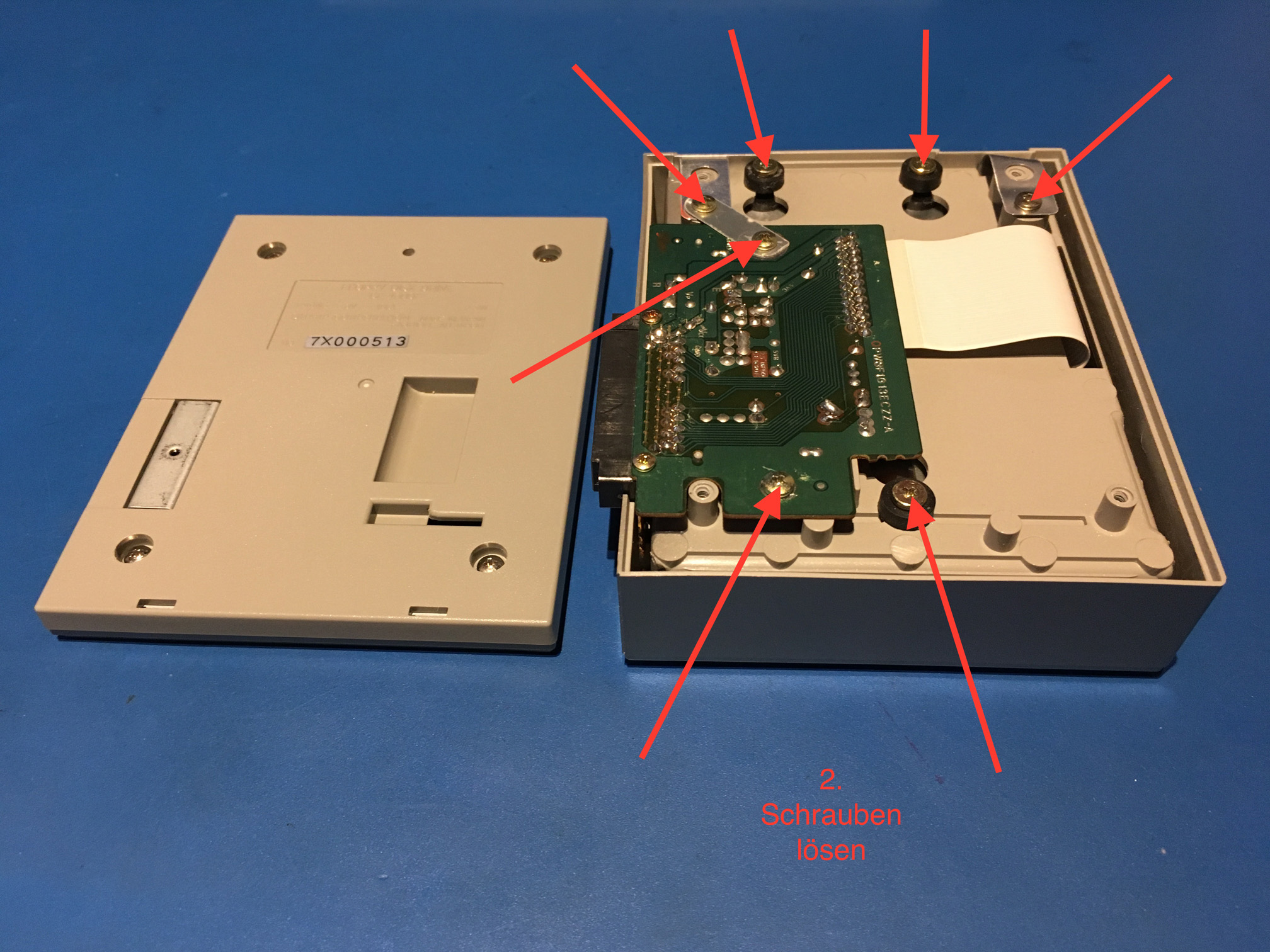

2. Remove the screws.

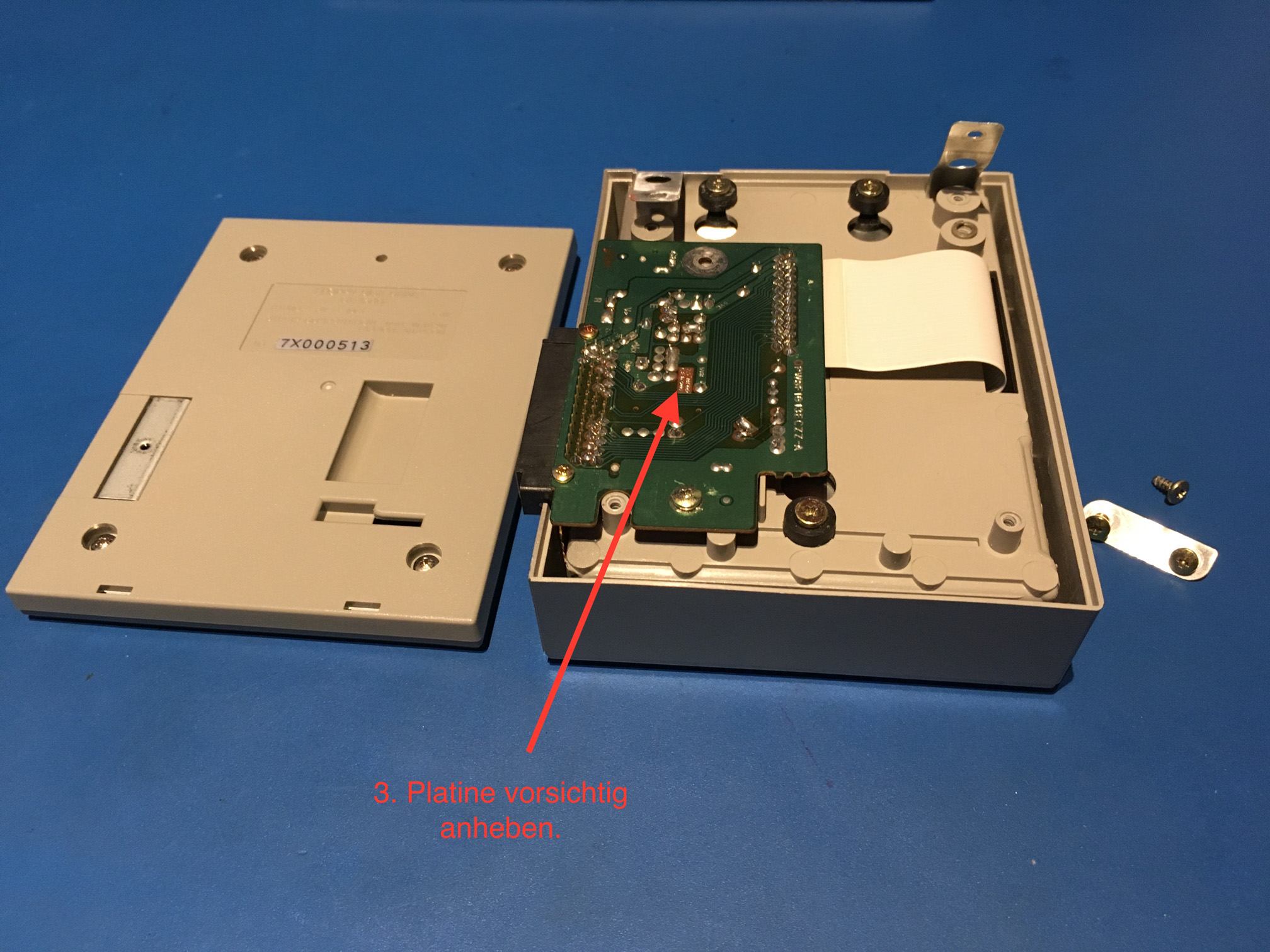

3. Lift the board carefully.

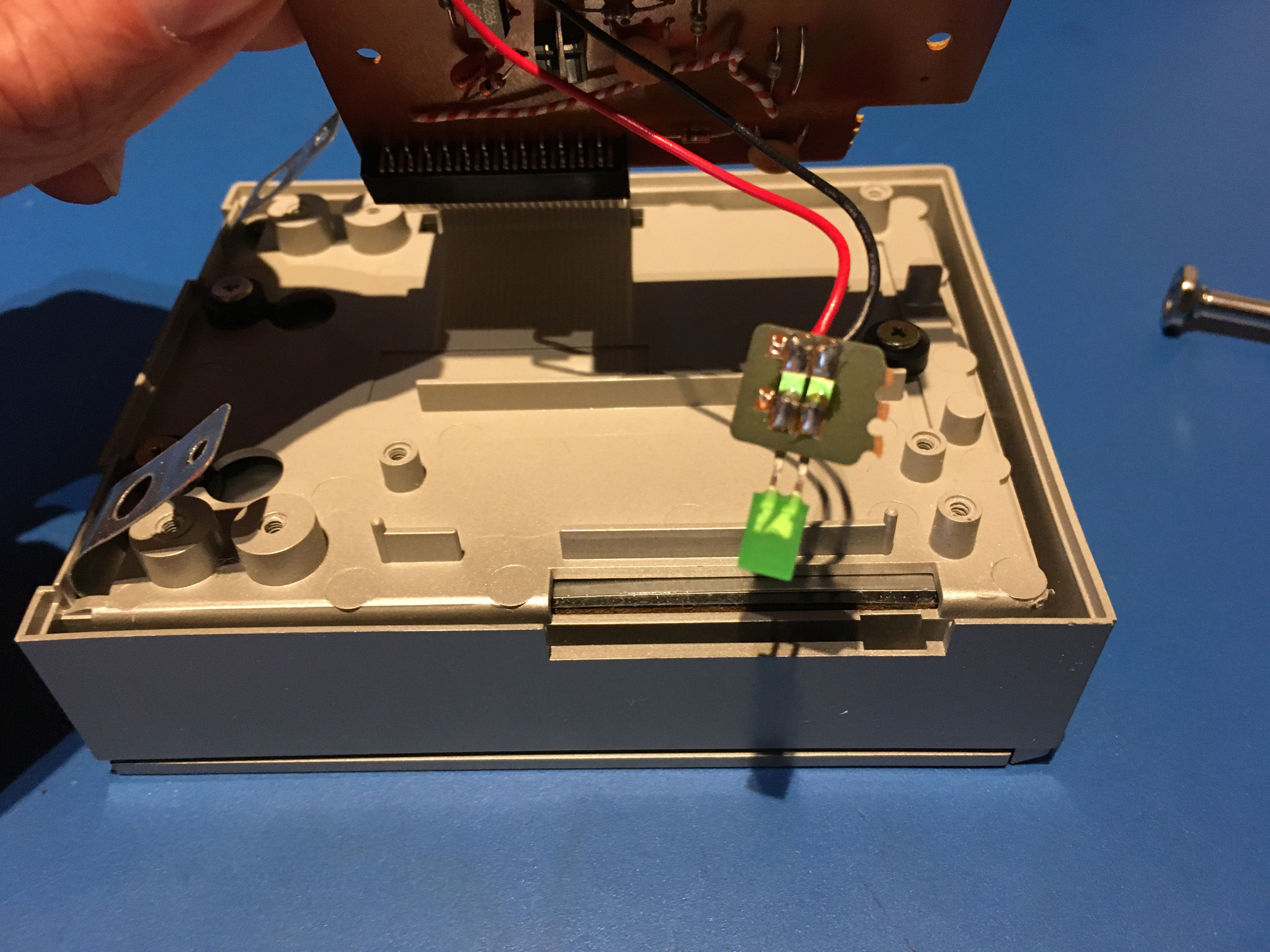

4. Pull the LED board upwards.

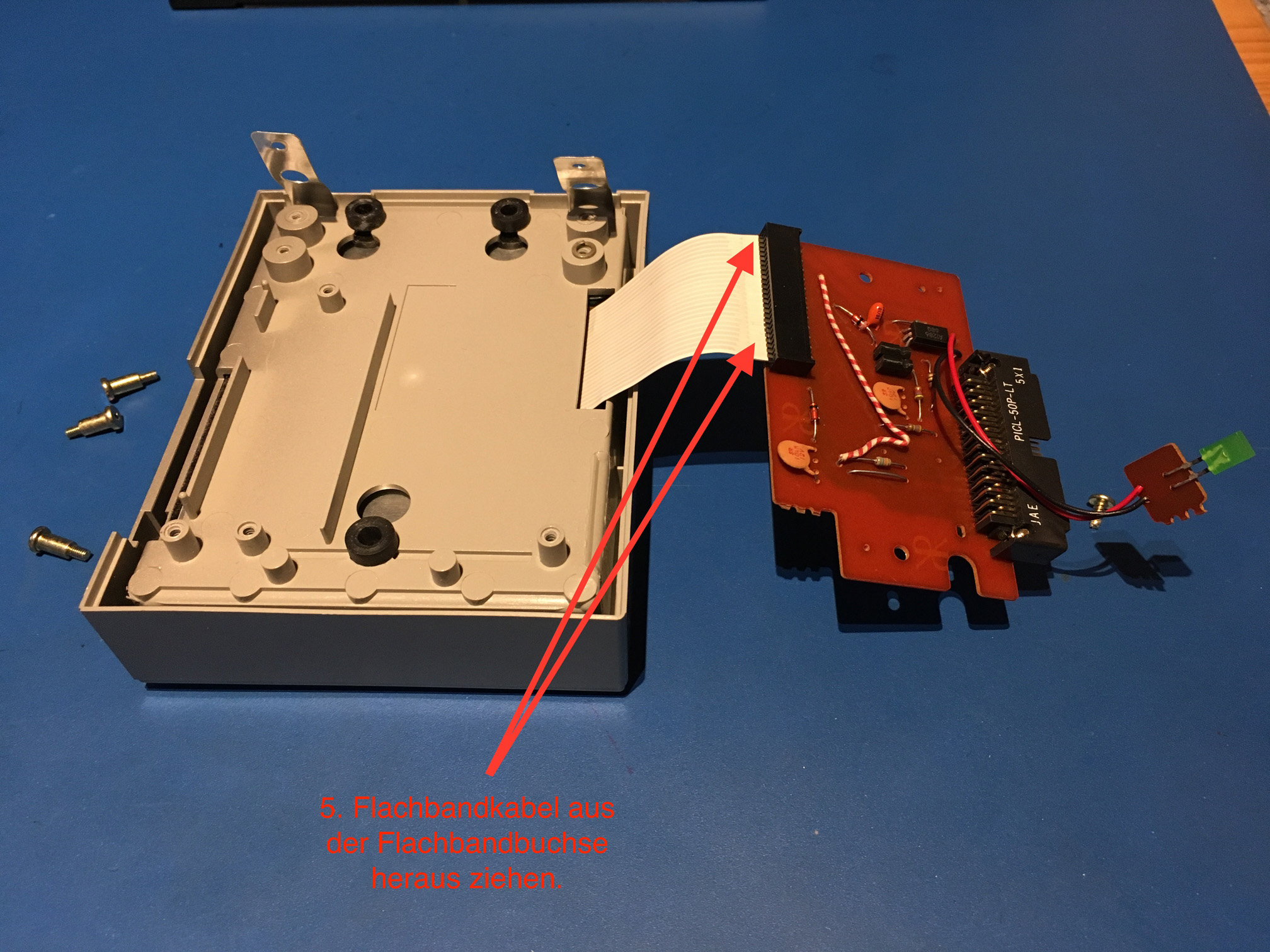

5. Remove the ribbon cable from the socket.

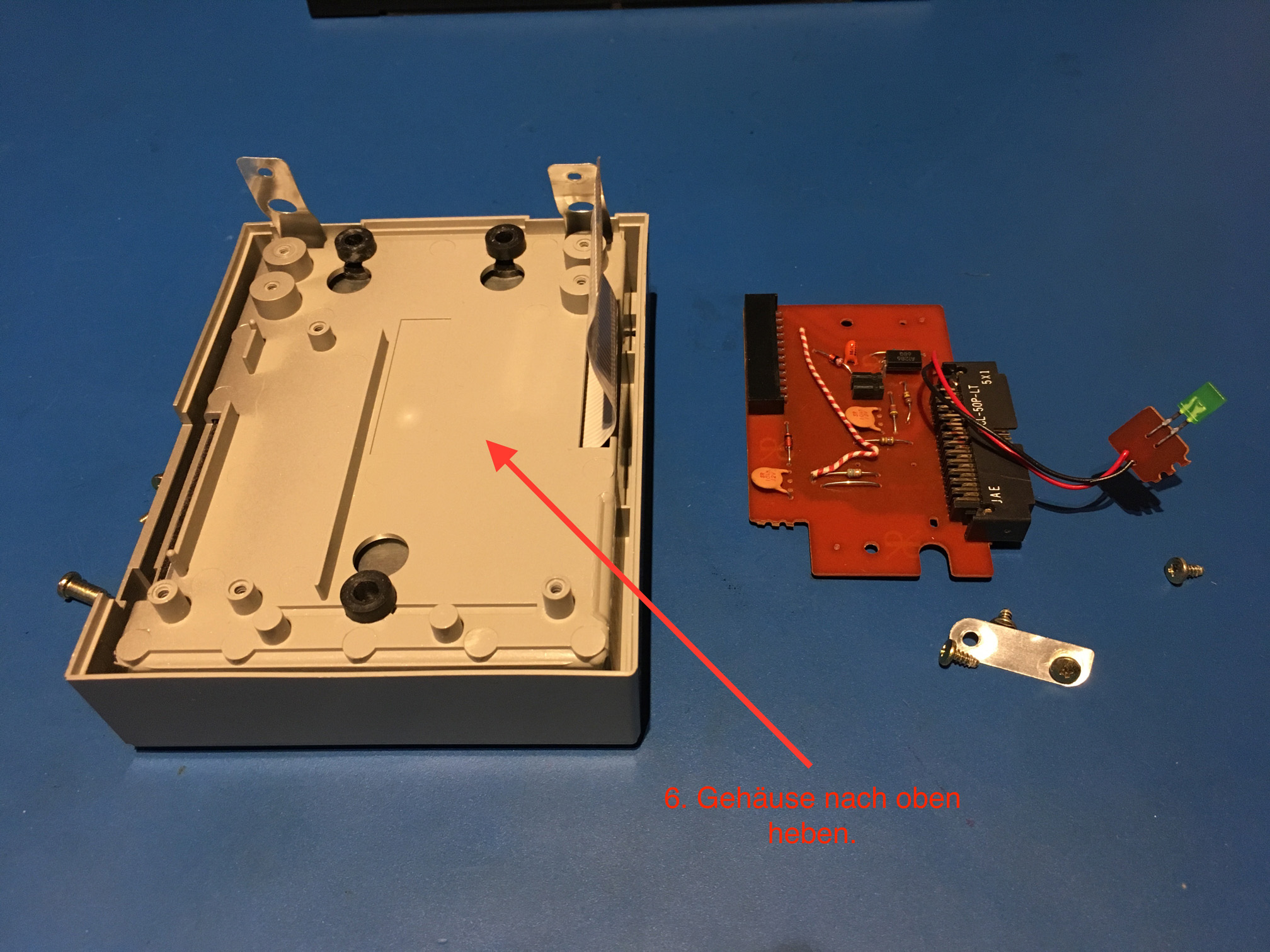

6. Lift the housing upwards.

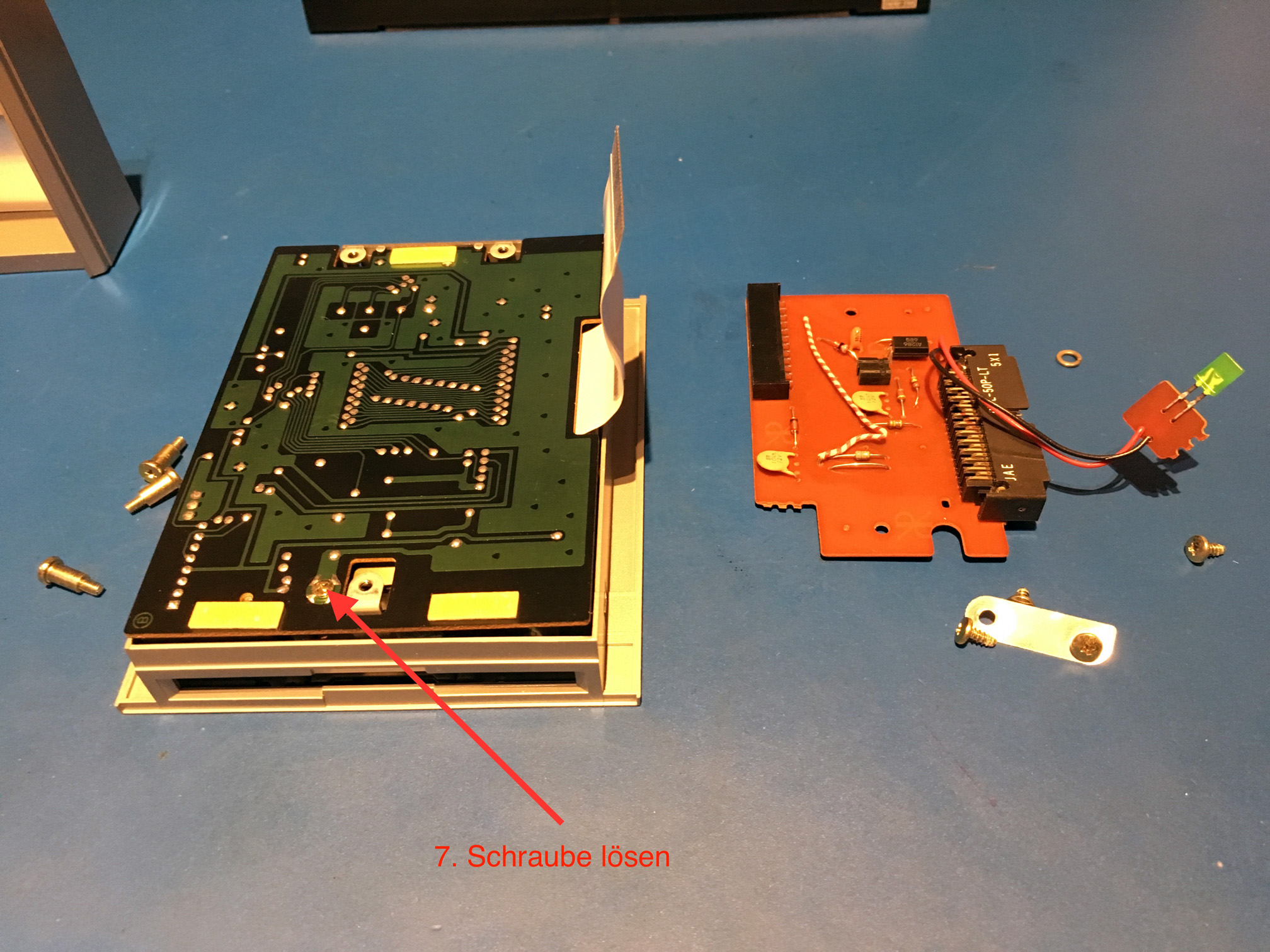

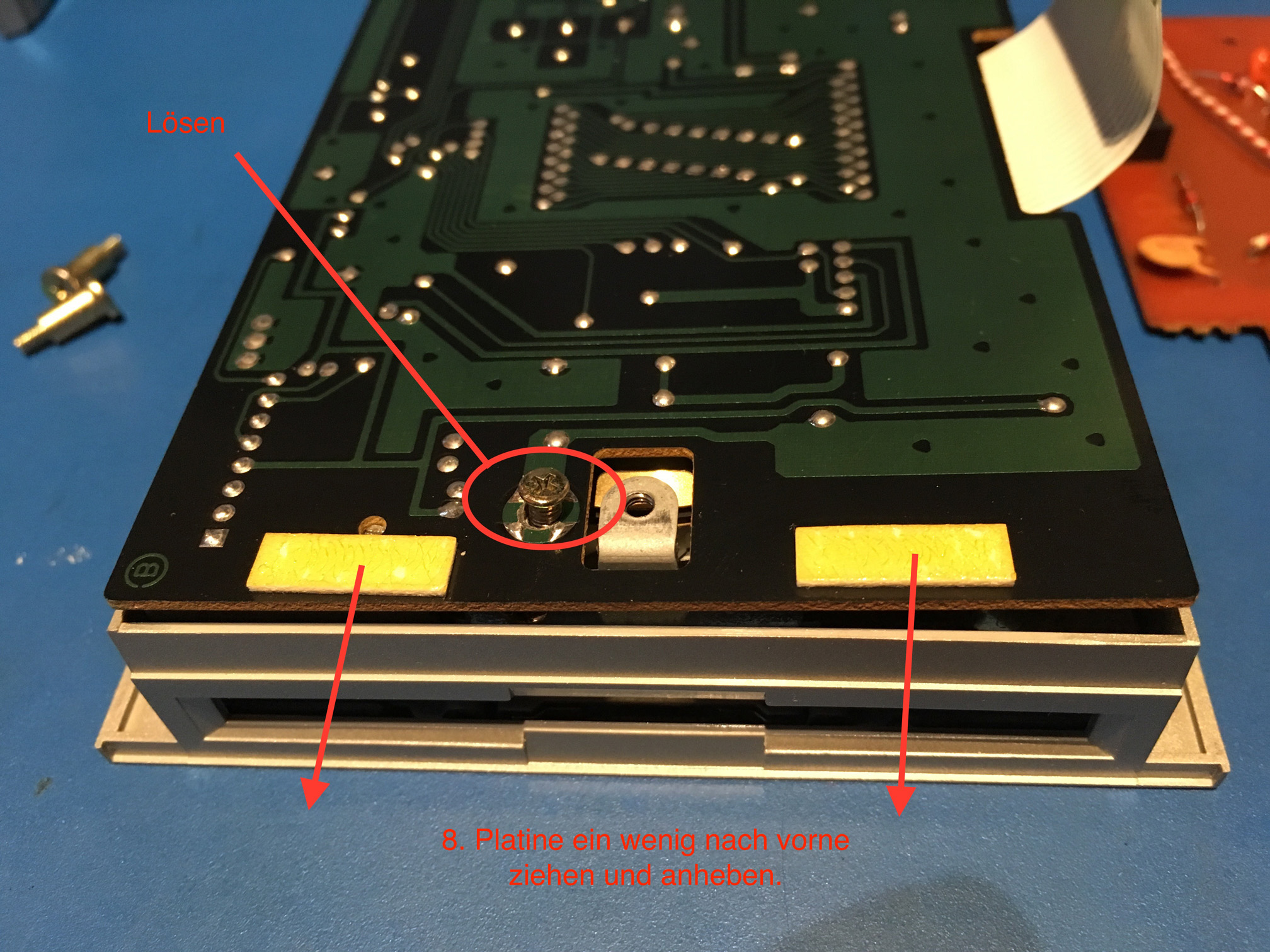

7. Remove the screw

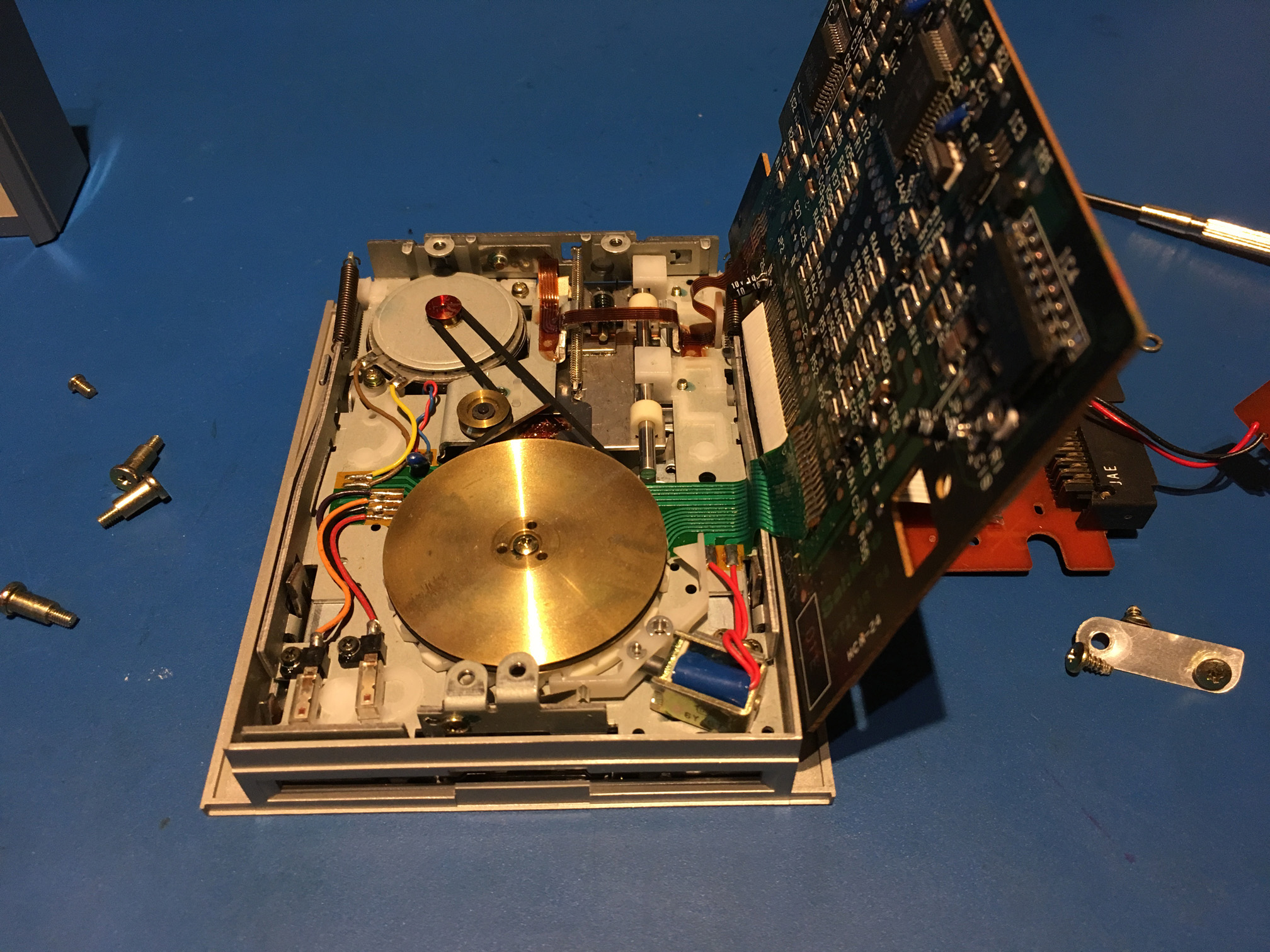

8. Pull the board a little bit forward and lift it.

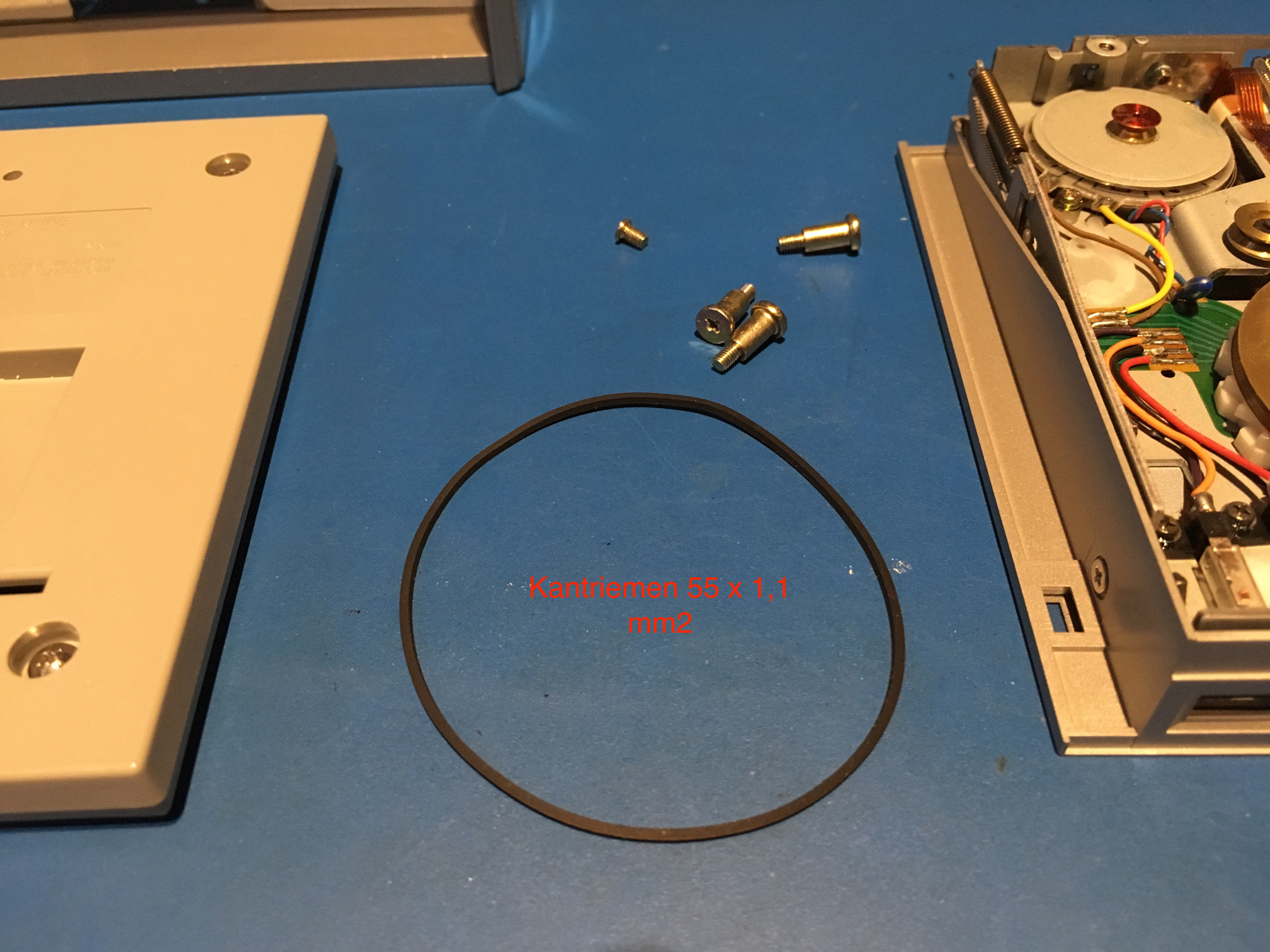

V-belt: 55 cm x 1,1 mm2
